Gradient based optimization (Adam)

# NBVAL_SKIP
from jax import config
#config.update("jax_enable_x64", True)
#config.update('jax_num_cpu_devices', 2)

#NBVAL_SKIP
import os

# Tell XLA to fake 2 host CPU devices
#os.environ['XLA_FLAGS'] = '--xla_force_host_platform_device_count=3'

# Only make GPU 0 and GPU 1 visible to JAX:
#os.environ['CUDA_VISIBLE_DEVICES'] = '1,2'

#os.environ["XLA_PYTHON_CLIENT_PREALLOCATE"]   = "false"

import jax

# Now JAX will list two CpuDevice entries
print(jax.devices())
# → [CpuDevice(id=0), CpuDevice(id=1)]

# NBVAL_SKIP
import os
#os.environ['SPS_HOME'] = '/mnt/storage/annalena_data/sps_fsps'
#os.environ['SPS_HOME'] = '/home/annalena/sps_fsps'
os.environ['SPS_HOME'] = '/Users/annalena/Documents/GitHub/fsps'
#os.environ['SPS_HOME'] = '/export/home/aschaibl/fsps'

Load ssp template from FSPS

# NBVAL_SKIP
from rubix.spectra.ssp.factory import get_ssp_template
ssp_fsps = get_ssp_template("FSPS")

# NBVAL_SKIP
age_values = ssp_fsps.age
print(age_values.shape)

metallicity_values = ssp_fsps.metallicity
print(metallicity_values.shape)

# NBVAL_SKIP
index_age = 90
index_metallicity = 9

#initial_metallicity_index = 5
#initial_age_index = 70
initial_metallicity_index = 10
initial_age_index = 104

initial_age_index2 = 90
initial_metallicity_index2 = 6

initial_age_index3 = 99
initial_metallicity_index3 = 11

learning_all = 5e-3
tol = 1e-10

print(f"start age: {age_values[initial_age_index]}, start metallicity: {metallicity_values[initial_metallicity_index]}")
print(f"target age: {age_values[index_age]}, target metallicity: {metallicity_values[index_metallicity]}")

Configure pipeline

# NBVAL_SKIP
from rubix.core.pipeline import RubixPipeline
import os
config = {
    "pipeline":{"name": "calc_gradient",},

    "logger": {
        "log_level": "DEBUG",
        "log_file_path": None,
        "format": "%(asctime)s - %(name)s - %(levelname)s - %(message)s",
    },
    "data": {
        "name": "IllustrisAPI",
        "args": {
            "api_key": os.environ.get("ILLUSTRIS_API_KEY"),
            "particle_type": ["stars"],
            "simulation": "TNG50-1",
            "snapshot": 99,
            "save_data_path": "data",
        },

        "load_galaxy_args": {
        "id": 14,
        "reuse": True,
        },

        "subset": {
            "use_subset": True,
            "subset_size": 2,
        },
    },
    "simulation": {
        "name": "IllustrisTNG",
        "args": {
            "path": "data/galaxy-id-14.hdf5",
        },

    },
    "output_path": "output",

    "telescope":
        {"name": "TESTGRADIENT",
         "psf": {"name": "gaussian", "size": 5, "sigma": 0.6},
         "lsf": {"sigma": 1.2},
         "noise": {"signal_to_noise": 100,"noise_distribution": "normal"},
         },
    "cosmology":
        {"name": "PLANCK15"},

    "galaxy":
        {"dist_z": 0.1,
         "rotation": {"type": "edge-on"},
        },

    "ssp": {
        "template": {
            "name": "FSPS"
        },
        "dust": {
                "extinction_model": "Cardelli89",
                "dust_to_gas_ratio": 0.01,
                "dust_to_metals_ratio": 0.4,
                "dust_grain_density": 3.5,
                "Rv": 3.1,
            },
    },
}

# NBVAL_SKIP
pipe = RubixPipeline(config)
inputdata = pipe.prepare_data()
output = pipe.run_sharded(inputdata)

Set target values

# NBVAL_SKIP
import jax.numpy as jnp

inputdata.stars.age = jnp.array([age_values[index_age], age_values[index_age]])
inputdata.stars.metallicity = jnp.array([metallicity_values[index_metallicity], metallicity_values[index_metallicity]])
inputdata.stars.mass = jnp.array([[1.0], [1.0]])
inputdata.stars.velocity = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])
inputdata.stars.coords = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])

# NBVAL_SKIP
targetdata = pipe.run_sharded(inputdata)

# NBVAL_SKIP
print(targetdata[0,0,:].shape)

Set initial datracube

# NBVAL_SKIP
inputdata.stars.age = jnp.array([age_values[initial_age_index], age_values[initial_age_index]])
inputdata.stars.metallicity = jnp.array([metallicity_values[initial_metallicity_index], metallicity_values[initial_metallicity_index]])
inputdata.stars.mass = jnp.array([[1.0], [1.0]])
inputdata.stars.velocity = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])
inputdata.stars.coords = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])

# NBVAL_SKIP
initialdata = pipe.run_sharded(inputdata)

Adam optimizer

# NBVAL_SKIP
from rubix.pipeline import linear_pipeline as pipeline

pipeline_instance = RubixPipeline(config)

pipeline_instance._pipeline = pipeline.LinearTransformerPipeline(
    pipeline_instance.pipeline_config,
    pipeline_instance._get_pipeline_functions()
)
pipeline_instance._pipeline.assemble()
pipeline_instance.func = pipeline_instance._pipeline.compile_expression()

# NBVAL_SKIP
import optax

def loss_only_wrt_age_metallicity(age, metallicity, base_data, target):

        base_data.stars.age = age*20
        base_data.stars.metallicity = metallicity*0.05

        output = pipeline_instance.func(base_data)
        #loss = jnp.sum((output.stars.datacube - target) ** 2)
        #loss = jnp.sum(optax.l2_loss(output.stars.datacube, target.stars.datacube))
        #loss = jnp.sum(optax.huber_loss(output.stars.datacube, target.stars.datacube))
        loss = jnp.sum(optax.cosine_distance(output.stars.datacube, target))

        return jnp.log10(loss) #loss#/0.03 #jnp.log10(loss #/5e-5)

# NBVAL_SKIP
import jax
import jax.numpy as jnp
import optax


def adam_optimization_multi(loss_fn, params_init, data, target, learning=learning_all, tol=1e-3, max_iter=500):
    """
    Optimizes both age and metallicity.

    Args:
        loss_fn: function with signature loss_fn(age, metallicity, data, target)
        params_init: dict with keys 'age' and 'metallicity', each a JAX array
        data: base data for the loss function
        target: target data for the loss function
        learning_rate: learning rate for Adam
        tol: tolerance for convergence (based on update norm)
        max_iter: maximum number of iterations

    Returns:
        params: final parameters (dict)
        params_history: list of parameter values for each iteration
        loss_history: list of loss values for each iteration
    """
    params = params_init  # e.g., {'age': jnp.array(...), 'metallicity': jnp.array(...)}
    optimizers = {
        'age': optax.adam(learning),
        'metallicity': optax.adam(learning)
    }
    # Create a parameter label pytree matching the structure of params
    param_labels = {'age': 'age', 'metallicity': 'metallicity'}

    # Combine the optimizers with multi_transform
    optimizer = optax.multi_transform(optimizers, param_labels)
    optimizer_state = optimizer.init(params)

    age_history = []
    metallicity_history = []
    loss_history = []

    for i in range(max_iter):
        # Compute loss and gradients with respect to both parameters
        loss, grads = jax.value_and_grad(lambda p: loss_fn(p['age'], p['metallicity'], data, target))(params)
        loss_history.append(float(loss))
        # Save current parameters (convert from JAX arrays to floats)
        age_history.append(float(params['age'][0]))
        metallicity_history.append(float(params['metallicity'][0]))
        #params_history.append({
        #    'age': params['age'],
        #    'metallicity': params['metallicity']
        #})

        # Compute updates and apply them
        updates, optimizer_state = optimizer.update(grads, optimizer_state)
        params = optax.apply_updates(params, updates)

        # Optionally clip the parameters to enforce physical constraints:
        #params['age'] = jnp.clip(params['age'], 0.0, 1.0)
        #params['metallicity'] = jnp.clip(params['metallicity'], 0.0, 1.0)
        # For metallicity, uncomment and adjust the limits as needed:
        # params['metallicity'] = jnp.clip(params['metallicity'], metallicity_lower_bound, metallicity_upper_bound)

        # Check convergence based on the global norm of updates
        if optax.global_norm(updates) < tol:
            print(f"Converged at iteration {i}")
            break

    return params, age_history, metallicity_history, loss_history

# NBVAL_SKIP
loss_only_wrt_age_metallicity(inputdata.stars.age, inputdata.stars.metallicity, inputdata, targetdata)

# NBVAL_SKIP
data = inputdata  # Replace with your actual data if needed
target_value = targetdata  # Replace with your actual target

# Define initial guesses for both age and metallicity.
# Adjust the initialization as needed for your problem.
age_init = jnp.array([age_values[initial_age_index]/20, age_values[initial_age_index]/20])
metallicity_init = jnp.array([metallicity_values[initial_metallicity_index]/0.05, metallicity_values[initial_metallicity_index]/0.05])


# Pack both initial parameters into a dictionary.
params_init = {'age': age_init, 'metallicity': metallicity_init}
print(f"Initial parameters: {params_init}")

# Call the new optimizer function that handles both parameters.
optimized_params, age_history, metallicity_history, loss_history = adam_optimization_multi(
    loss_only_wrt_age_metallicity,
    params_init,
    data,
    target_value,
    learning=learning_all,
    tol=tol,
    max_iter=5000,
)

print(f"Optimized Age: {optimized_params['age']}")
print(f"Optimized Metallicity: {optimized_params['metallicity']}")

# NBVAL_SKIP
inputdata2 = pipe.prepare_data()

inputdata2.stars.age = jnp.array([age_values[initial_age_index2], age_values[initial_age_index2]])
inputdata2.stars.metallicity = jnp.array([metallicity_values[initial_metallicity_index2], metallicity_values[initial_metallicity_index2]])
inputdata2.stars.mass = jnp.array([[1.0], [1.0]])
inputdata2.stars.velocity = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])
inputdata2.stars.coords = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])

initialdata2 = pipe.run_sharded(inputdata2)

data2 = inputdata2  # Replace with your actual data if needed
target_value = targetdata  # Replace with your actual target

# Define initial guesses for both age and metallicity.
# Adjust the initialization as needed for your problem.
age_init2 = jnp.array([age_values[initial_age_index2]/20, age_values[initial_age_index2]/20])
metallicity_init2 = jnp.array([metallicity_values[initial_metallicity_index2]/0.05, metallicity_values[initial_metallicity_index2]/0.05])


# Pack both initial parameters into a dictionary.
params_init2 = {'age': age_init2, 'metallicity': metallicity_init2}
print(f"Initial parameters: {params_init2}")

# Call the new optimizer function that handles both parameters.
optimized_params2, age_history2, metallicity_history2, loss_history2 = adam_optimization_multi(
    loss_only_wrt_age_metallicity,
    params_init2,
    data2,
    target_value,
    learning=learning_all,
    tol=tol,
    max_iter=5000,
)

#NBVAL_SKIP
inputdata3 = pipe.prepare_data()

inputdata3.stars.age = jnp.array([age_values[initial_age_index3], age_values[initial_age_index3]])
inputdata3.stars.metallicity = jnp.array([metallicity_values[initial_metallicity_index3], metallicity_values[initial_metallicity_index3]])
inputdata3.stars.mass = jnp.array([[1.0], [1.0]])
inputdata3.stars.velocity = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])
inputdata3.stars.coords = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])

initialdata3 = pipe.run_sharded(inputdata3)

data3 = inputdata3  # Replace with your actual data if needed
target_value = targetdata  # Replace with your actual target

age_init3 = jnp.array([age_values[initial_age_index3]/20, age_values[initial_age_index3]/20])
metallicity_init3 = jnp.array([metallicity_values[initial_metallicity_index3]/0.05, metallicity_values[initial_metallicity_index3]/0.05])

params_init3 = {'age': age_init3, 'metallicity': metallicity_init3}
print(f"Initial parameters: {params_init3}")

optimized_params3, age_history3, metallicity_history3, loss_history3 = adam_optimization_multi(
    loss_only_wrt_age_metallicity,
    params_init3,
    data3,
    target_value,
    learning=learning_all,
    tol=tol,
    max_iter=5000,
)

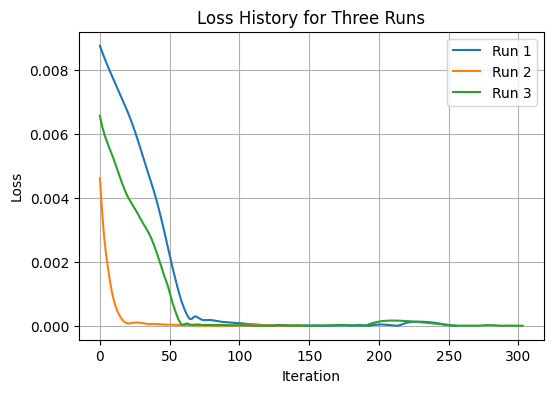

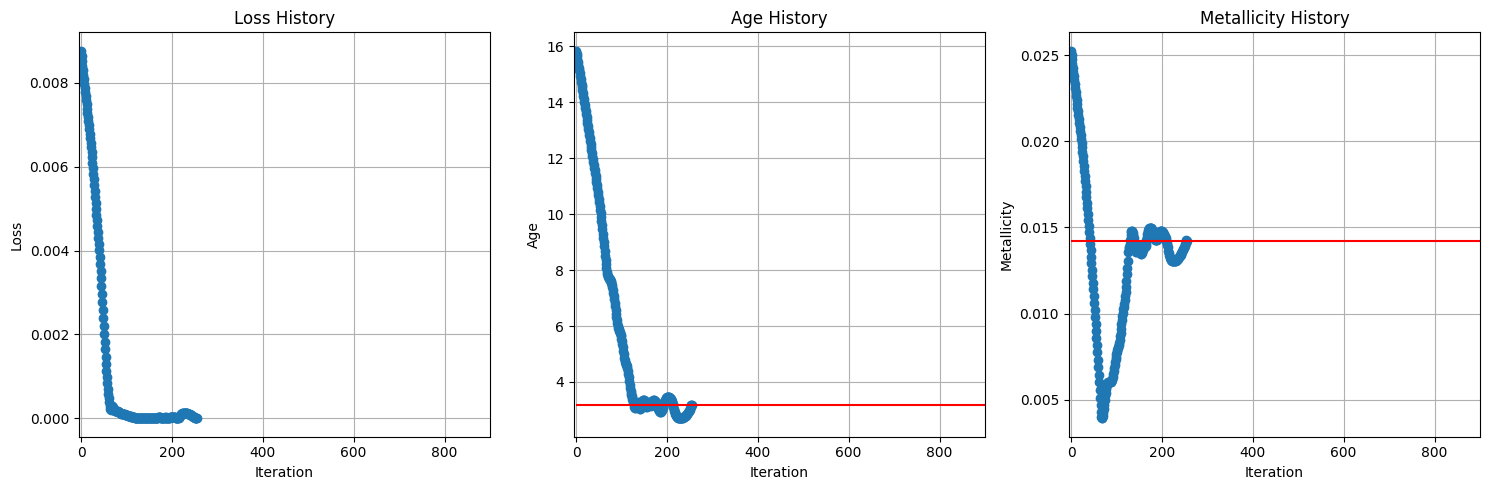

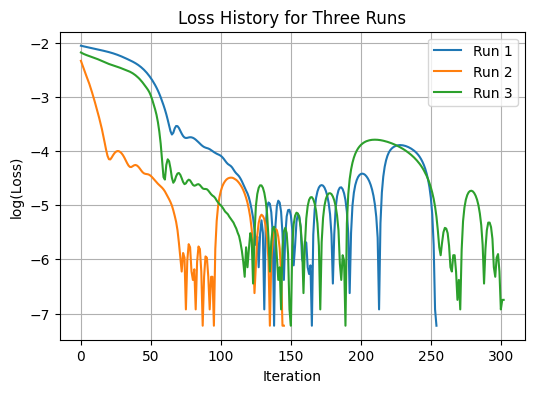

Loss history

# NBVAL_SKIP
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np

# Configure matplotlib to use LaTeX for all text
#mpl.rcParams.update({
#    "text.usetex": True,                # Use LaTeX for text rendering
#    "font.family": "serif",             # Use serif fonts
    # Here "txfonts" is not directly available as a font in matplotlib,
    # but you can set the serif list to a font that closely resembles it.
    # Alternatively, you can try using:
#    "font.serif": ["Times", "Palatino", "New Century Schoolbook"],
#    "font.size": 16,                    # Set the base font size (adjust to match your document)
#    "text.latex.preamble": r"\usepackage{txfonts}",  # Use txfonts to match your Overleaf document
#})


# Convert histories to NumPy arrays if needed
loss_history_np = np.array(loss_history)
age_history_np = np.array(age_history)
metallicity_history_np = np.array(metallicity_history)

# Create an x-axis based on the number of iterations (assumed same for all)
iterations = np.arange(len(loss_history_np))
print(f"Number of iterations: {len(iterations)}")

# Create a figure with three subplots in one row and shared x-axis.
fig, axs = plt.subplots(1, 3, figsize=(15, 5), sharex=True)

# Plot the loss history (convert log-loss back to loss if needed)
axs[0].plot(iterations, 10**loss_history_np, marker='o', linestyle='-')
axs[0].set_xlabel("Iteration")
axs[0].set_ylabel("Loss")
axs[0].set_title("Loss History")
axs[0].grid(True)

# Plot the age history, multiplying by 20 for the physical scale.
axs[1].plot(iterations, age_history_np * 20, marker='o', linestyle='-')
# Draw a horizontal line for the target age
axs[1].hlines(y=age_values[index_age], xmin=0, xmax=iterations[-1], color='r', linestyle='-')
axs[1].set_xlabel("Iteration")
axs[1].set_ylabel("Age")
axs[1].set_title("Age History")
axs[1].grid(True)

# Plot the metallicity history, multiplying by 0.05 for the physical scale.
axs[2].plot(iterations, metallicity_history_np *0.05, marker='o', linestyle='-')
# Draw a horizontal line for the target metallicity
axs[2].hlines(y=metallicity_values[index_metallicity], xmin=0, xmax=iterations[-1], color='r', linestyle='-')
axs[2].set_xlabel("Iteration")
axs[2].set_ylabel("Metallicity")
axs[2].set_title("Metallicity History")
axs[2].grid(True)

axs[0].set_xlim(-5, 900)
axs[1].set_xlim(-5, 900)
axs[2].set_xlim(-5, 900)
plt.tight_layout()
plt.savefig(f"output/optimisation_history.jpg", dpi=1000)
plt.show()

# NBVAL_SKIP
#run the pipeline with the optimized age
#rubixdata.stars.age = optimized_age
i = 0
inputdata.stars.age = jnp.array([age_history[i]*20, age_history[i]*20])
inputdata.stars.metallicity = jnp.array([metallicity_history[i]*0.05, metallicity_history[i]*0.05])
inputdata.stars.mass = jnp.array([[1.0], [1.0]])
inputdata.stars.velocity = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])

pipe = RubixPipeline(config)
rubixdata = pipe.run_sharded(inputdata)

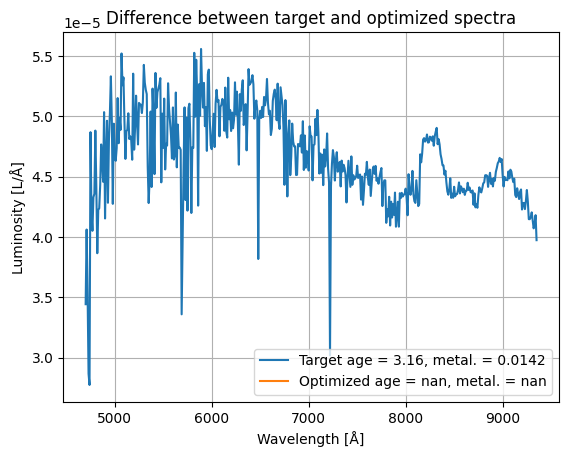

#plot the target and the optimized spectra
import matplotlib.pyplot as plt
wave = pipe.telescope.wave_seq

spectra_target = targetdata
spectra_optimitzed = rubixdata
print(rubixdata.shape)


plt.plot(wave, spectra_target[0,0,:], label=f"Target age = {age_values[index_age]:.2f}, metal. = {metallicity_values[index_metallicity]:.4f}")
plt.plot(wave, spectra_optimitzed[0,0,:], label=f"Optimized age = {age_history[i]*20:.2f}, metal. = {metallicity_history[i]*0.05:.4f}")
plt.xlabel("Wavelength [Å]")
plt.ylabel("Luminosity [L/Å]")
plt.title("Difference between target and optimized spectra")
#plt.title(f"Loss {loss_history[i]:.2e}")
plt.legend()
#plt.ylim(0.00003, 0.00008)
plt.grid(True)
plt.show()

# NBVAL_SKIP
#run the pipeline with the optimized age
#rubixdata.stars.age = optimized_age
i = 850
inputdata.stars.age = jnp.array([age_history[i]*20, age_history[i]*20])
inputdata.stars.metallicity = jnp.array([metallicity_history[i]*0.05, metallicity_history[i]*0.05])
inputdata.stars.mass = jnp.array([[1.0], [1.0]])
inputdata.stars.velocity = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])

pipe = RubixPipeline(config)
rubixdata = pipe.run_sharded(inputdata)

#plot the target and the optimized spectra
import matplotlib.pyplot as plt
wave = pipe.telescope.wave_seq

spectra_target = targetdata #.stars.datacube
spectra_optimitzed = rubixdata #.stars.datacube

plt.plot(wave, spectra_target[0,0,:], label=f"Target age = {age_values[index_age]:.2f}, metal. = {metallicity_values[index_metallicity]:.4f}")
plt.plot(wave, spectra_optimitzed[0,0,:], label=f"Optimized age = {age_history[i]*20:.2f}, metal. = {metallicity_history[i]*0.05:.4f}")
plt.xlabel("Wavelength [Å]")
plt.ylabel("Luminosity [L/Å]")
plt.title("Difference between target and optimized spectra")
#plt.title(f"Loss {loss_history[i]:.2e}")
plt.legend()
#plt.ylim(0.00003, 0.00008)
plt.grid(True)
plt.show()

# NBVAL_SKIP

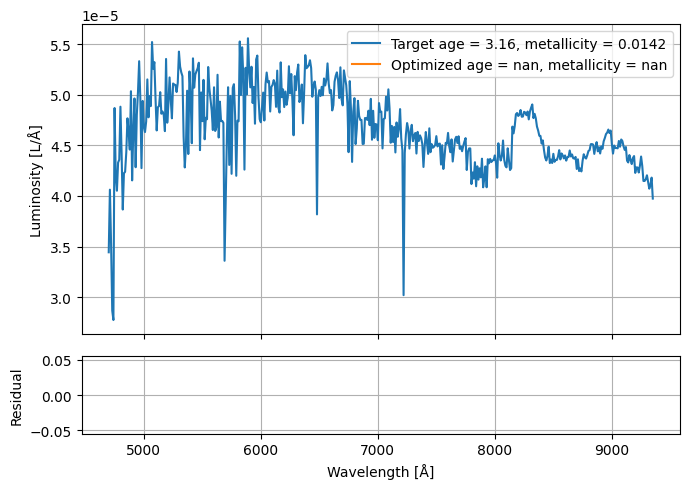

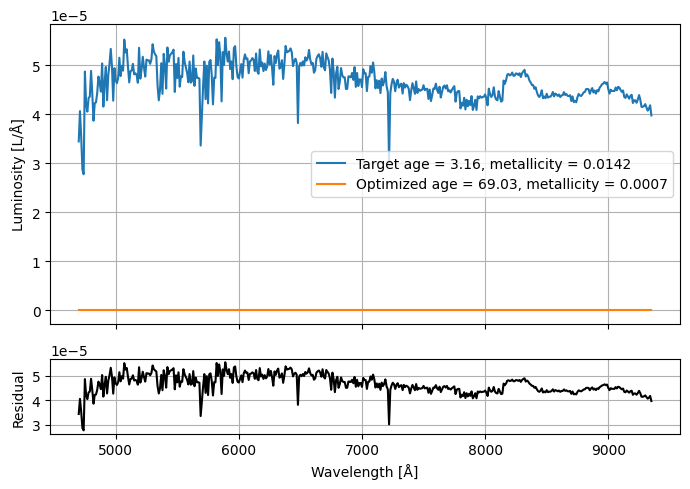

import matplotlib as mpl
import matplotlib.pyplot as plt

# Create a figure with two subplots, sharing the x-axis.
fig, (ax1, ax2) = plt.subplots(nrows=2, sharex=True, gridspec_kw={'height_ratios': [4, 1]}, figsize=(7, 5))

# Plot target and optimized spectra in the upper subplot.
ax1.plot(wave, spectra_target[0, 0, :], label=f"Target age = {age_values[index_age]:.2f}, metallicity = {metallicity_values[index_metallicity]:.4f}")
ax1.plot(wave, spectra_optimitzed[0, 0, :], label=f"Optimized age = {age_history[i]*20:.2f}, metallicity = {metallicity_history[i]*0.05:.4f}")
ax1.set_ylabel("Luminosity [L/Å]")
#ax1.set_title("Target vs Optimized Spectra")
ax1.legend()
ax1.grid(True)

# Compute the residual (difference between target and optimized spectra).
residual = (spectra_target[0, 0, :] - spectra_optimitzed[0, 0, :]) #/spectra_target[0, 0, :]

# Plot the residual in the lower subplot.
ax2.plot(wave, residual, 'k-')
ax2.set_xlabel("Wavelength [Å]")
ax2.set_ylabel("Residual")
ax2.grid(True)

plt.tight_layout()
plt.savefig(f"output/optimisation_spectra.jpg", dpi=1000)
plt.show()

Calculate loss landscape

# NBVAL_SKIP
import optax

def loss_only_wrt_age_metallicity(age, metallicity, base_data, target):

    # Create 2D arrays for age and metallicity.
    # For example, if there are two stars, you might do:
    base_data.stars.age = jnp.array([age*20, age*20])
    base_data.stars.metallicity = jnp.array([metallicity*0.05, metallicity*0.05])

    output = pipeline_instance.func(base_data)
    #loss = jnp.sum((output.stars.datacube - target) ** 2)
    loss = jnp.sum(optax.cosine_distance(output.stars.datacube, target))
    return loss

# NBVAL_SKIP
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt

# Number of grid points
num_steps = 100

# Define physical ranges
physical_ages = jnp.linspace(0, 1, num_steps)         # Age from 0 to 10
physical_metals = jnp.linspace(0, 1, num_steps)    # Metallicity from 1e-4 to 0.05

# Use nested vmap to compute the loss at every grid point.
# Note: loss_only_wrt_age_metallicity takes physical values directly.
#vectorized_loss = jax.vmap(
#    lambda age: jax.vmap(
#        lambda metal: loss_only_wrt_age_metallicity(age, metal, inputdata, targetdata)
#    )(physical_metals)
#)(physical_ages)

# Convert the result to a NumPy array for plotting
#loss_map = jnp.array(vectorized_loss)

loss_map = []

for age in physical_ages:
    row = []
    for metal in physical_metals:
        loss = loss_only_wrt_age_metallicity(age, metal, inputdata, targetdata)
        row.append(loss)
    loss_map.append(jnp.stack(row))

loss_map = jnp.stack(loss_map)

# NBVAL_SKIP
# Plot the loss landscape using imshow.
import matplotlib.pyplot as plt
import matplotlib.colors as colors
plt.figure(figsize=(5, 4))
plt.imshow(loss_map, origin='lower', extent=[0,1,0,1], aspect='auto', norm=colors.LogNorm())#, vmin=-3.5, vmax=-2.5)#extent=[1e-4, 0.05, 0, 10]
plt.xlabel('Metallicity')
plt.ylabel('Age')
plt.title('Loss Landscape')
plt.colorbar(label='loss')
# Plot a red dot at the desired coordinates.
plt.plot(metallicity_history[:], age_history[:])#, 'bx', markersize=8)
#plt.plot(metallicity_history[::100], age_history[::100], 'bx', markersize=8)
plt.plot(metallicity_values[index_metallicity]/0.05, age_values[index_age]/20, 'ro', markersize=8)
plt.plot(metallicity_values[initial_metallicity_index]/0.05, age_values[initial_age_index]/20, 'ro', markersize=8)
plt.savefig(f"output/optimisation_losslandscape.jpg", dpi=1000)
plt.show()

# NBVAL_SKIP
metallicity_history = np.array(metallicity_history)*0.05
age_history = np.array(age_history)*20
metallicity_history2 = np.array(metallicity_history2)*0.05
age_history2 = np.array(age_history2)*20
metallicity_history3 = np.array(metallicity_history3)*0.05
age_history3 = np.array(age_history3)*20

# NBVAL_SKIP

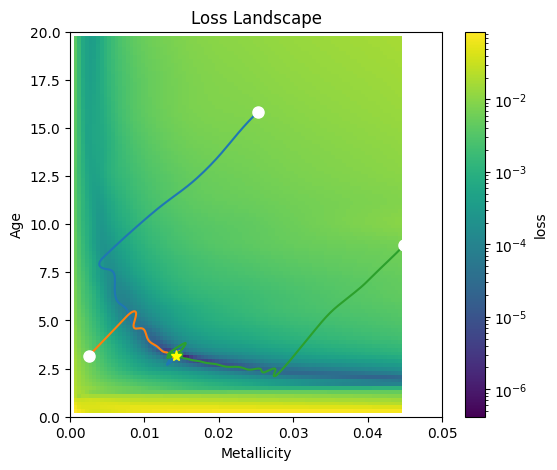

import matplotlib.pyplot as plt
import matplotlib.colors as colors

plt.figure(figsize=(6, 5))

# Update the extent to the physical values: metallicity from 0 to 0.05 and age from 0 to 20.
plt.imshow(loss_map, origin='lower', extent=[0, 0.05, 0, 20], aspect='auto', norm=colors.LogNorm())

plt.xlabel('Metallicity')
plt.ylabel('Age')
plt.title('Loss Landscape')
plt.colorbar(label='loss')

# Plot the history in physical coordinates by multiplying the normalized values.
plt.plot(metallicity_history[:], age_history[:])#, 'bx', markersize=8)
plt.plot(metallicity_history2[:], age_history2[:])#, 'gx', markersize=8
plt.plot(metallicity_history3[:], age_history3[:])#, 'mx', markersize=8)

# Plot the red dots in physical coordinates
plt.plot(metallicity_values[index_metallicity], age_values[index_age], marker='*', color='yellow', markersize=8)
plt.plot(metallicity_values[initial_metallicity_index], age_values[initial_age_index], 'wo', markersize=8)
plt.plot(metallicity_values[initial_metallicity_index2], age_values[initial_age_index2], 'wo', markersize=8)
plt.plot(metallicity_values[initial_metallicity_index3], age_values[initial_age_index3], 'wo', markersize=8)

plt.savefig("output/optimisation_losslandscape.jpg", dpi=1000)
plt.show()

#NBVAL_SKIP
# plot loss history for all three runs

loss_history_np = np.array(loss_history)
loss_history2 = np.array(loss_history2)
loss_history3 = np.array(loss_history3)
iterations = np.arange(len(loss_history_np))

plt.figure(figsize=(6, 4))
plt.plot(iterations, loss_history_np, label='Run 1')
plt.plot(iterations, loss_history2, label='Run 2')
plt.plot(iterations, loss_history3, label='Run 3')
#plt.yscale('log')
plt.xlabel('Iteration')
plt.ylabel('log(Loss)')
plt.title('Loss History for Three Runs')
plt.legend()
plt.grid(True)
plt.savefig("output/optimisation_loglosshistory.jpg", dpi=1000)
plt.show()

#NBVAL_SKIP
# plot loss history for all three runs

loss_history_np = np.array(loss_history)
loss_history2 = np.array(loss_history2)
loss_history3 = np.array(loss_history3)
iterations = np.arange(len(loss_history_np))

plt.figure(figsize=(6, 4))
plt.plot(iterations, 10**loss_history_np, label='Run 1')
plt.plot(iterations, 10**loss_history2, label='Run 2')
plt.plot(iterations, 10**loss_history3, label='Run 3')
#plt.yscale('log')
plt.xlabel('Iteration')
plt.ylabel('Loss')
plt.title('Loss History for Three Runs')
plt.legend()
plt.grid(True)
plt.savefig("output/optimisation_losshistory.jpg", dpi=1000)
plt.show()

#NBVAL_SKIP

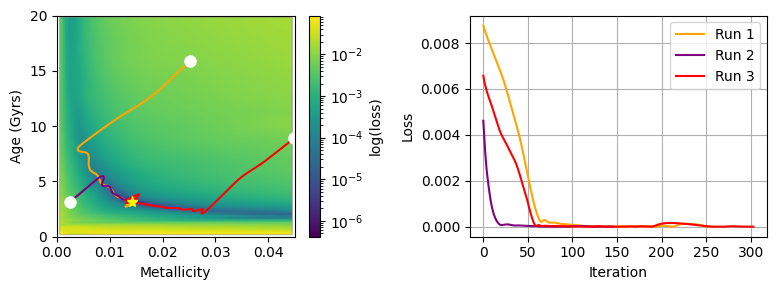

import matplotlib.pyplot as plt
import matplotlib.colors as colors
import numpy as np

# Prepare loss histories
loss_history_np = np.array(loss_history)
loss_history2 = np.array(loss_history2)
loss_history3 = np.array(loss_history3)
iterations = np.arange(len(loss_history_np))

fig, axs = plt.subplots(1, 2, figsize=(8, 3))

# --- Left: Loss Landscape ---
im = axs[0].imshow(
    loss_map,
    origin='lower',
    extent=[0, 0.05, 0, 20],
    aspect='auto',
    norm=colors.LogNorm()
)
axs[0].set_xlabel('Metallicity')
axs[0].set_ylabel('Age (Gyrs)')
axs[0].set_xlim(0, 0.045)
#axs[0].set_title('Loss Landscape')
fig.colorbar(im, ax=axs[0], label='log(loss)')

# Plot the history in physical coordinates
axs[0].plot(metallicity_history[:], age_history[:], color='orange')
axs[0].plot(metallicity_history2[:], age_history2[:], color='purple')
axs[0].plot(metallicity_history3[:], age_history3[:], color='red')

# Plot the red dots in physical coordinates
axs[0].plot(metallicity_values[index_metallicity], age_values[index_age], marker='*', color='yellow', markersize=8)
axs[0].plot(metallicity_values[initial_metallicity_index], age_values[initial_age_index], 'wo', markersize=8)
axs[0].plot(metallicity_values[initial_metallicity_index2], age_values[initial_age_index2], 'wo', markersize=8)
axs[0].plot(metallicity_values[initial_metallicity_index3], age_values[initial_age_index3], 'wo', markersize=8)

# --- Right: Loss History ---
axs[1].plot(iterations, 10**loss_history_np, label='Run 1', color='orange')
axs[1].plot(iterations, 10**loss_history2, label='Run 2', color='purple')
axs[1].plot(iterations, 10**loss_history3, label='Run 3', color='red')
axs[1].set_xlabel('Iteration')
axs[1].set_ylabel('Loss')
#axs[1].set_title('Loss History for Three Runs')
axs[1].legend()
axs[1].grid(True)

plt.tight_layout()
plt.savefig("output/optimisation_landscape_and_history.jpg", dpi=1000)
plt.show()

# NBVAL_SKIP
#run the pipeline with the optimized age
#rubixdata.stars.age = optimized_age
i = 200
inputdata.stars.age = jnp.array([age_history[i]*20, age_history[i]*20])
inputdata.stars.metallicity = jnp.array([metallicity_history[i]*0.05, metallicity_history[i]*0.05])
inputdata.stars.mass = jnp.array([[1.0], [1.0]])
inputdata.stars.velocity = jnp.array([[0.0, 0.0, 0.0], [0.0, 0.0, 0.0]])

pipe = RubixPipeline(config)
rubixdata = pipe.run_sharded(inputdata)

#plot the target and the optimized spectra
import matplotlib.pyplot as plt
wave = pipe.telescope.wave_seq

spectra_target = targetdata
spectra_optimitzed = rubixdata
print(rubixdata.shape)


# Create a figure with two subplots, sharing the x-axis.
fig, (ax1, ax2) = plt.subplots(nrows=2, sharex=True, gridspec_kw={'height_ratios': [4, 1]}, figsize=(7, 5))

# Plot target and optimized spectra in the upper subplot.
ax1.plot(wave, spectra_target[0, 0, :], label=f"Target age = {age_values[index_age]:.2f}, metallicity = {metallicity_values[index_metallicity]:.4f}")
ax1.plot(wave, spectra_optimitzed[0, 0, :], label=f"Optimized age = {age_history[i]*20:.2f}, metallicity = {metallicity_history[i]*0.05:.4f}")
ax1.set_ylabel("Luminosity [L/Å]")
#ax1.set_title("Target vs Optimized Spectra")
ax1.legend()
ax1.grid(True)

# Compute the residual (difference between target and optimized spectra).
residual = (spectra_target[0, 0, :] - spectra_optimitzed[0, 0, :]) #/spectra_target[0, 0, :]

# Plot the residual in the lower subplot.
ax2.plot(wave, residual, 'k-')
ax2.set_xlabel("Wavelength [Å]")
ax2.set_ylabel("Residual")
ax2.grid(True)

plt.tight_layout()
plt.savefig(f"output/optimisation_spectra.jpg", dpi=1000)
plt.show()
